Rock For the Hungry

Meredith Tomlins, Joe Clough, David Dizon, Devon Kay, Ericoplin, the Gypsys, the Reflects, AntiBen, Laura Krumwiede, Aria Nebenzahl, Joe Clough, James Cornelison, and A Day Off
May 8, 2010
The last rock show of spring 2010 for Vineyard, supporting efforts to provide food for those in Haiti.

This was a third show w/ two spaces - five bands in the lobby, and a number of acoustic acts in a second smaller venue. Lighting in the lobby was unchanged from the last show (except gel), and included three new S4pars, each lamped to 750w and geled with L181, for a nice strong deep purple toplight. WFL pars on the floor used R27 and R93. The back wall had a bottom wash in G895, front wash in R74, gobo wash in R46, and a cross pattern in R23. Front light, as usual, was R55, and the main back/top wash remained with R69. Drums had R15 and L181 from the top, and R46 and R94 from farther back. Side washes were R73 and R22. There were also back washes of R74, R95, and R27.

The second area is a very small stage with only 6 circuits, and a very low ceiling (about 10'). Here, we used the Unison portable controller with 6ch, a number of very small Par20s for backlight (R68 and R16), and three fresnels (in R42, R02, and R70, I think).

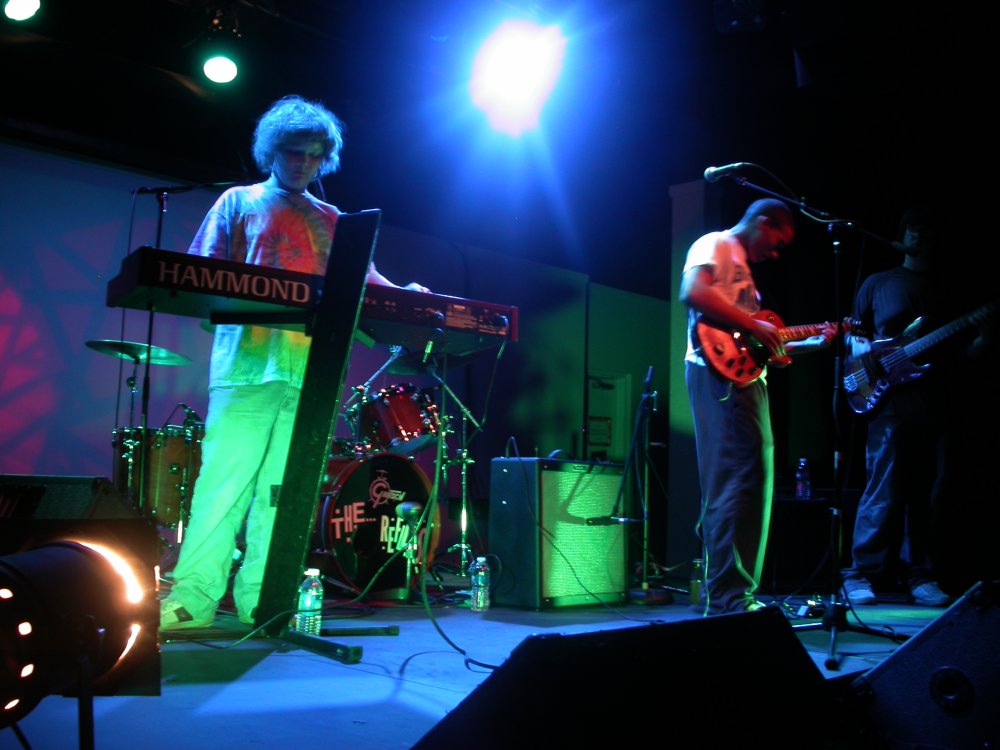

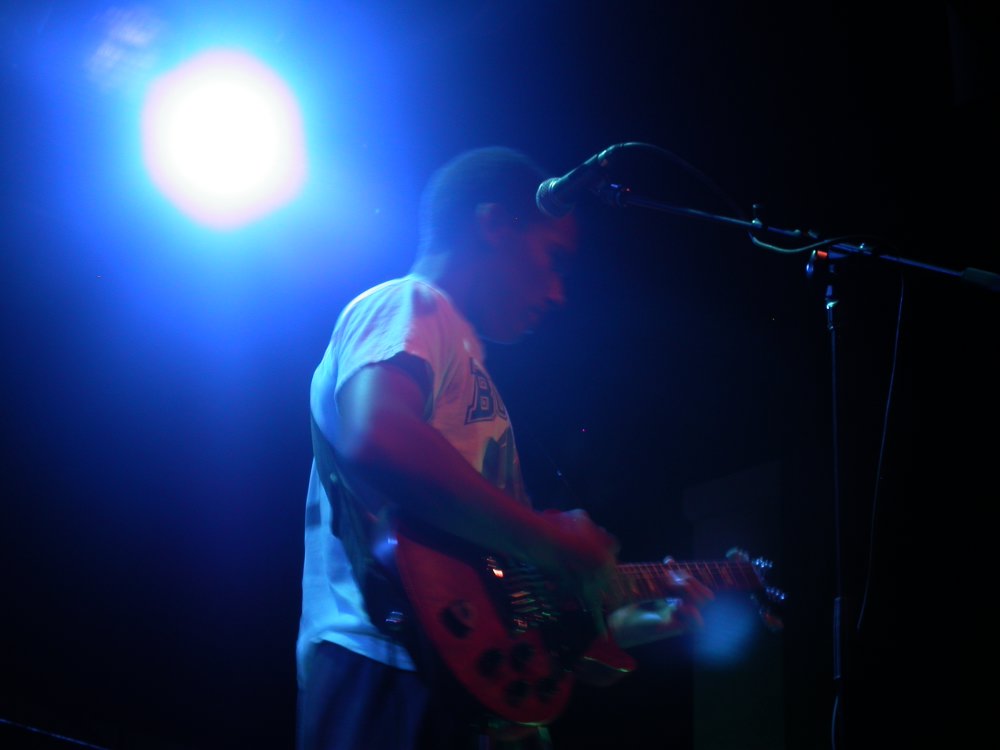

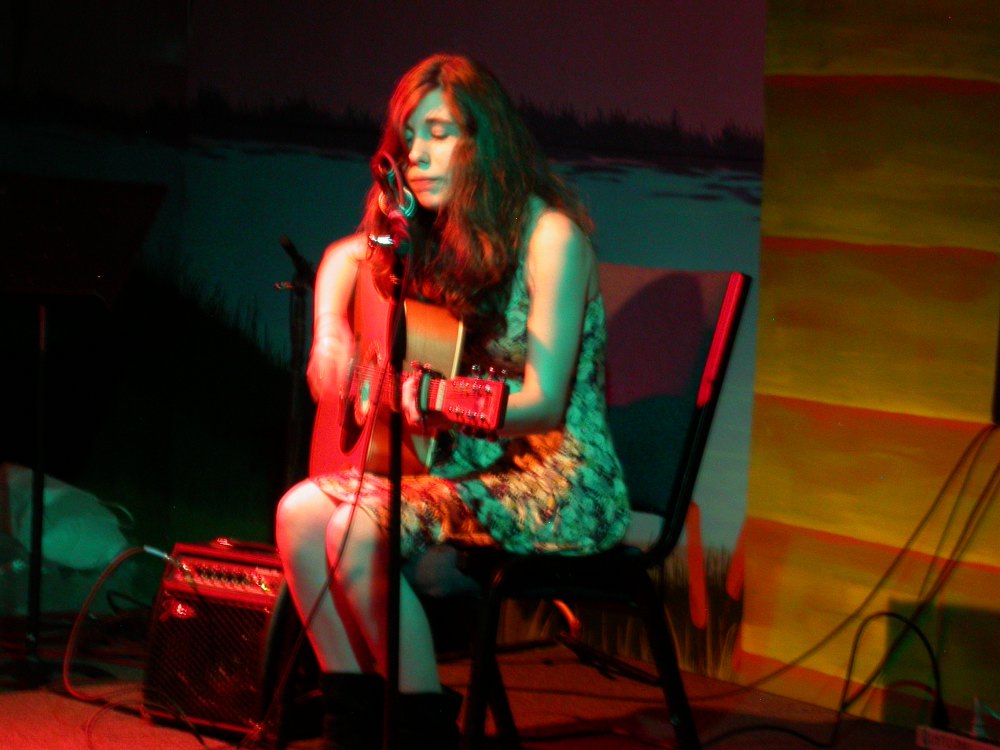

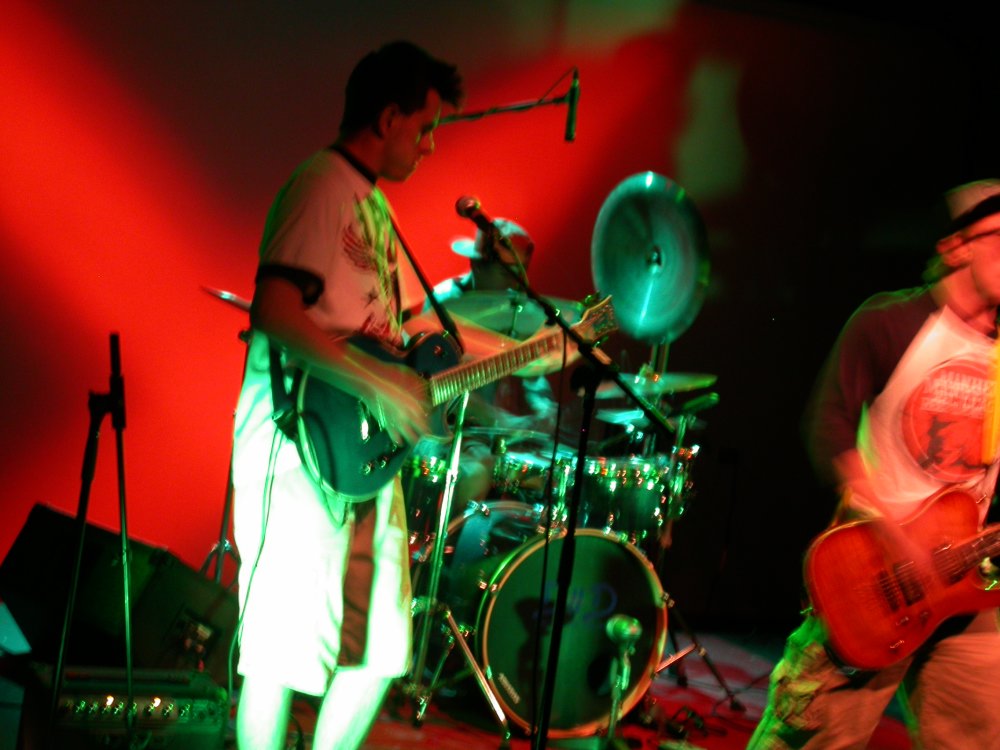

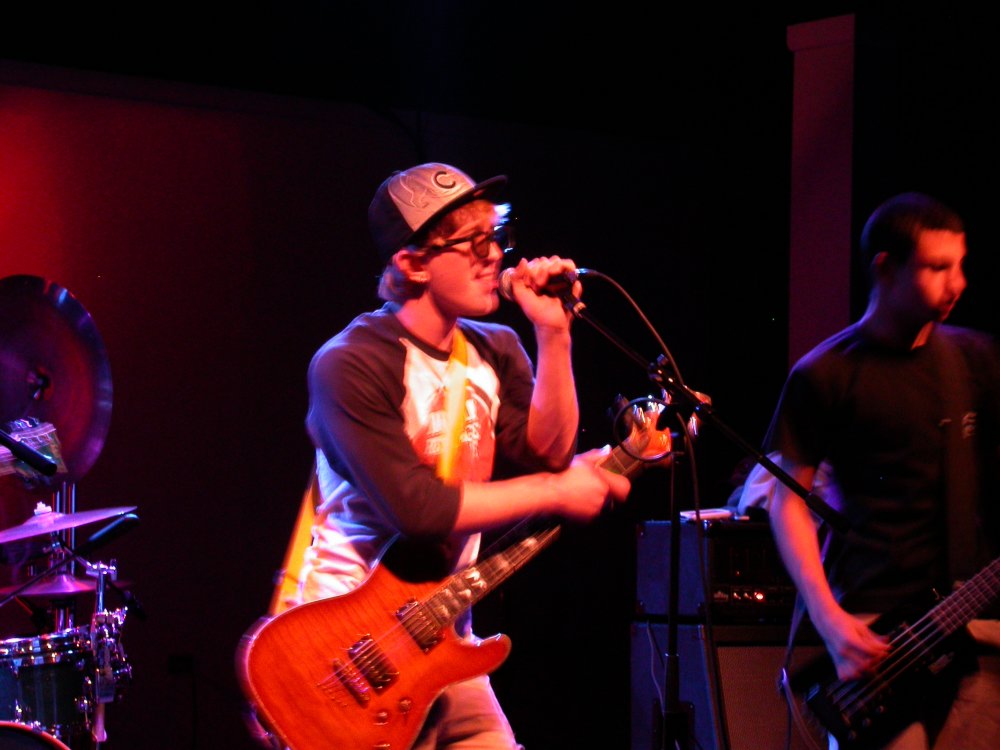

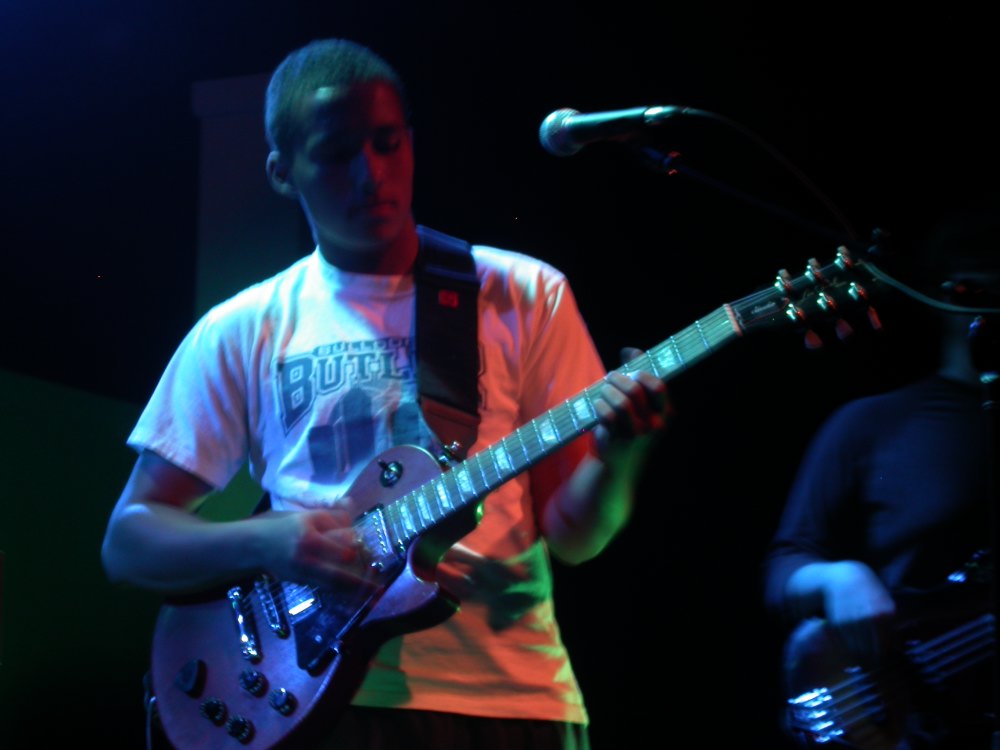

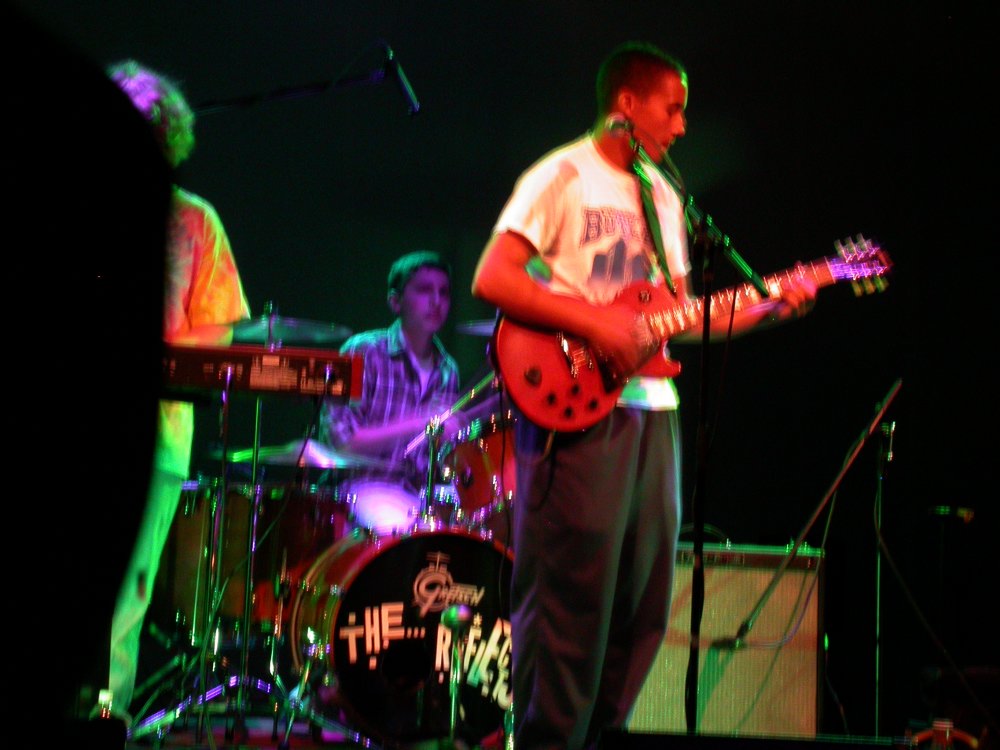

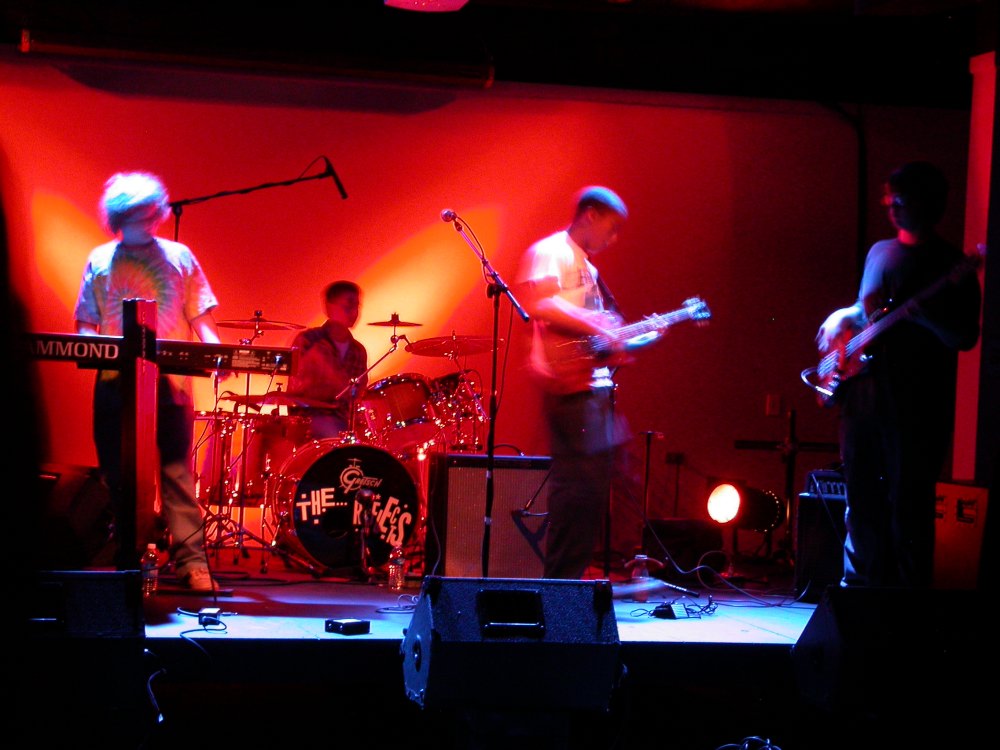

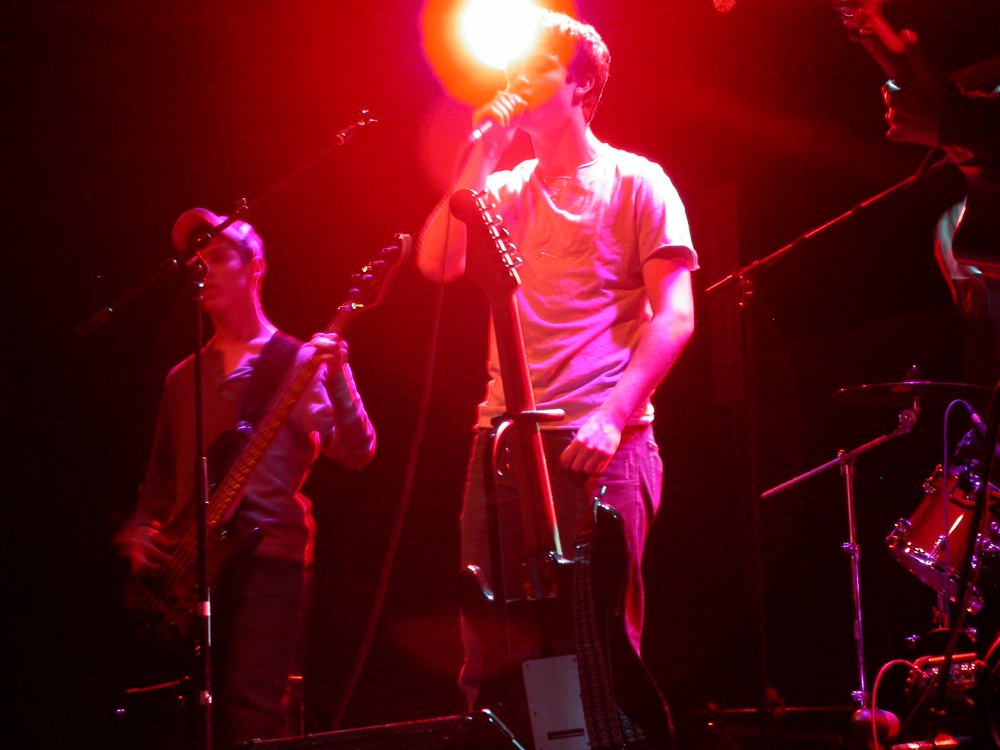

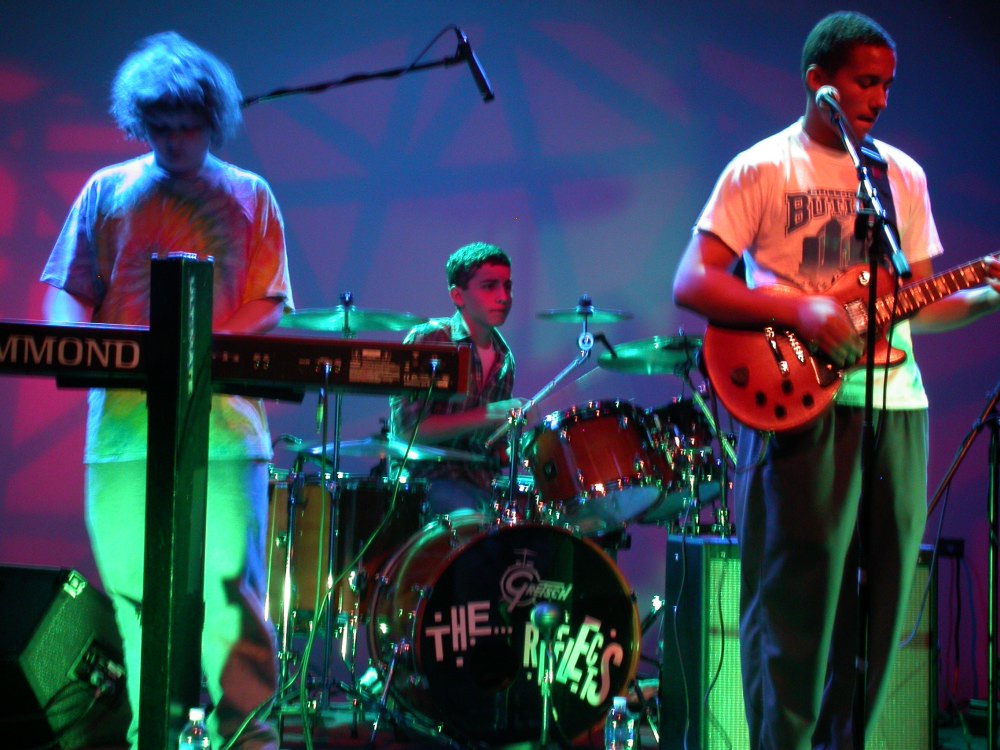

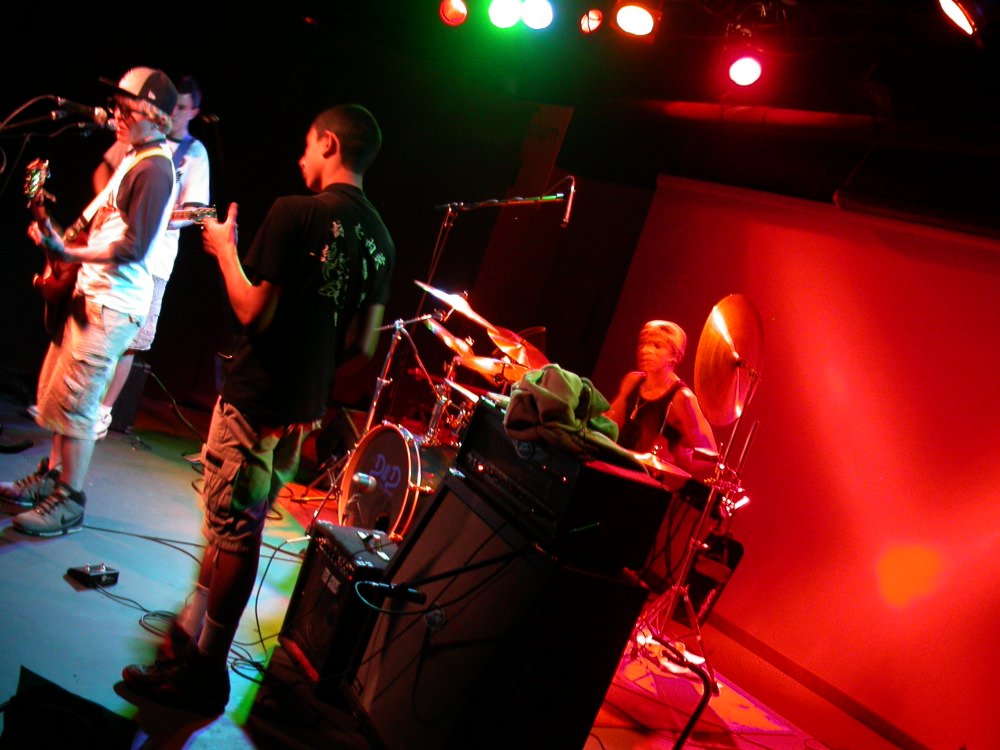

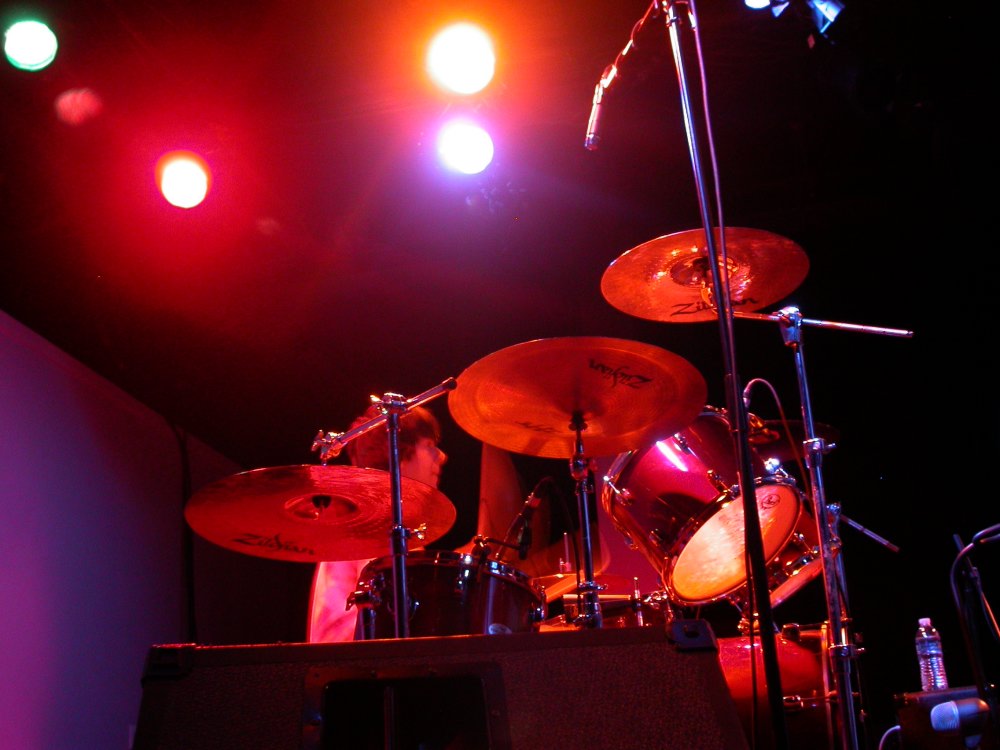

Besides my photos below, also see the show's Facebook page for details and photos.
